Backups - Advanced

The following information applies to versions of Bluechip prior to 2.12.

For Bluechip 2.12 or later see:

Backup Requirements
(Health Industry) Backup Requirements (Health Industry)
Running Time: 25:27
Backup and Restore Changes for 3.18 Backup and Restore Changes for Bluechip 3.18
Running Time: 2:06


Users of SQL 2008 R2 must install the Backward Compatibility Components from the SQL Server 2008 Feature Pack from the Microsoft Download Center, available at http://go.microsoft.com/fwlink/?LinkId=202308&clcid=0x409/

If you are not logged into Windows with Administrative privileges, and you have UAC (User Access Control) active in Windows, you may be prompted to login as a user with appropriate privileges, and/or prompted to allow Windows to run the Bluechip Backup application.

If you choose to backup to a drive other than your primary drive, ensure that the primary drive has enough spare disc space, as the back up will be created in a temporary folder on this drive first.

To Perform an Advanced Backup in Bluechip

From within Bluechip, select BC Tools > HCN Backup. You will be prompted to exit Bluechip, after which you can proceed.

The HCN Back/Restore Wizard appears.



Ensure the Advanced Backup View check box is enabled.

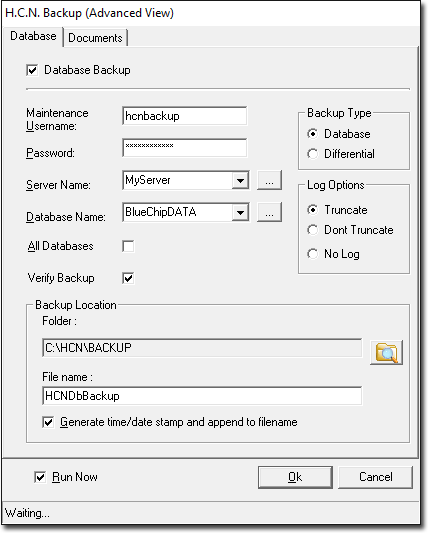

Click  The HCN Backup (Advanced View) window appears.



Select the Database tab, as shown above. If you wish to include the Bluechip database in your backup, ensure the Database Backup check box is enabled.

Enter the Maintenance Username of hcnbackup.

Enter the Maintenance Password of hcnbackup.

Select the name of the Server where your Bluechip data is located. To have Bluechip search your network for a list of available server, click

Select the name of the Bluechip Database. To have Bluechip generate a list of available databases, click  Alternatively, you can backup all databases by enabling the All Databases check box.

(Optional) Enable the Verify Backup check box if you wish the backup to be verified after completion.

If you wish to run the backup now, enable the associated check box and then click OK  The backup commences. You will be prompted when it has completed. If you wish to schedule the backup to run later, ensure the Run Now check box is disabled. Continue now to step 12.

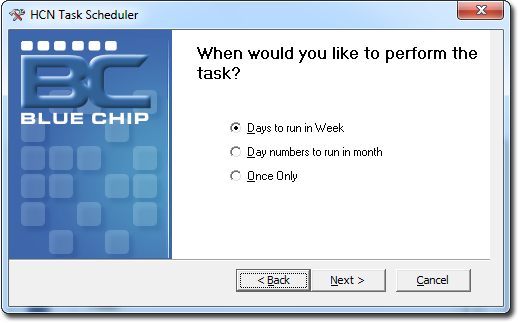

The HCN Task Scheduler appears.



Choose the frequency of the schedule backup(s) you wish to perform, form the options provided.

Click to continue. Depending which option you selected in step 8, you will now be provided with settings specific to that option, an example of which is shown below.



Click when you are ready to continue. You will be prompted to enter your domain credentials, if necessary.

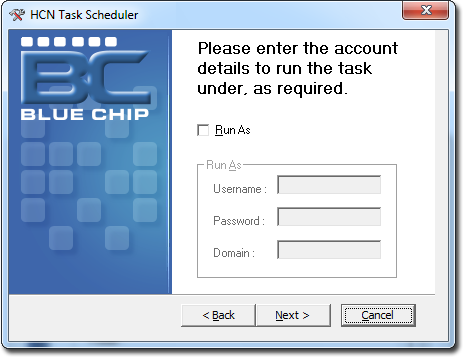

If your network domain settings require that you have permission to run a scheduled task, enable the Run As check box and then enter the domain name, and your Username and Password for that domain. If you are unsure of this, please consult your Systems Administrator.



Click to continue. You will be prompted that the backup has completed. Note that this prompt indicates only that you have completed configuring the backup wizard - the backup itself will be performed as per the schedule you setup in step 9.
